Break point seriesΒΆ
A state defined at a timestamp remains in effect until a new value is provided. After the final value in the dataset, the system remains in a constant state. Therefore, the only strict requirement is that the first data point occurs at, or before, the start of the data_period. While data can extend beyond the defined data period, such values are ignored by the model. Example of a break point series is shown below. Here a synthetic example of a minimum discharge limit for a hydropower station with 6 break points.
Break point |
Week |
Minimum discharge |
|---|---|---|
1 |
1 |
40 |
2 |
17 |
15 |
3 |
40 |
30 |
4 |
53 |
40 |
5 |
69 |
15 |
6 |
92 |
30 |

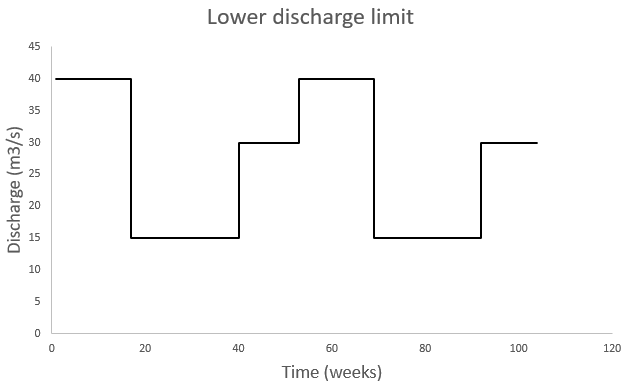

and visualised in a figure.
