Batteries

This notebook

import os
import numpy as np
from pyltmapi import LtmSession, LtmPlot

import logging
logging.basicConfig(level=logging.INFO)

from pathlib import Path

ltm_core_path =  os.environ.get("LTM_CORE_PATH", str(Path("~").expanduser().joinpath("ltm/release/bin/")))
license_file = os.environ.get("LTM_CORE_LICENSE_FILE", str(Path("~").expanduser().joinpath("ltm/ltm-license.dat")))

from IPython.display import display, display_markdown

ltmapi_version = LtmSession.version()
display(ltmapi_version)

'PyLTM version: 0.21.0'

def usercallback(program_info: dict, userdata: any):
    print(userdata)
    print(program_info)

    return True


def print_have_results(busbar):
    print(
        f"{busbar}.have_detailed_hydro_results()      = {busbar.have_detailed_hydro_results()}"
    )
    print(
        f"{busbar}.have_aggregated_hydro_results()    = {busbar.have_aggregated_hydro_results()}"
    )
    print(
        f"{busbar}.have_battery_results()             = {busbar.have_battery_results()}"
    )
    print(
        f"{busbar}.have_water_value_results()         = {busbar.have_water_value_results()}"
    )
    print(
        f"{busbar}.have_market_results()              = {busbar.have_market_results()}"
    )


def generate_plots(ltm):
    # Water values and price series
    for dc_line in ltm.model.dclines():
        dc_line_exchange = dc_line.transmission_results(time_axis=False)
        if dc_line_exchange != None:
            dc_line_exchange = np.array(dc_line_exchange, copy=False)
            dim = np.size(dc_line_exchange)

    for battery in reversed(ltm.model.battery_modules()):

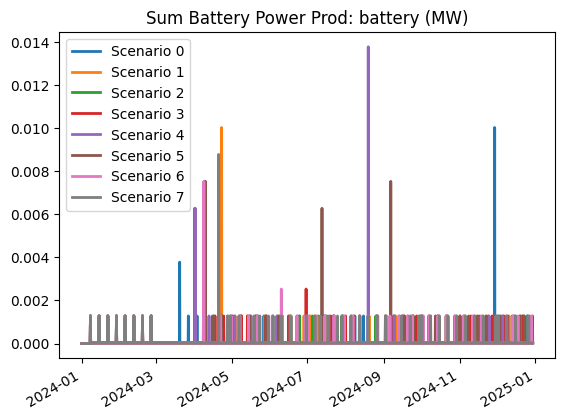

        LtmPlot.make_generic_plot(
            battery.sum_power_production(), f"Sum Battery Power Prod: {battery.name}"
        )

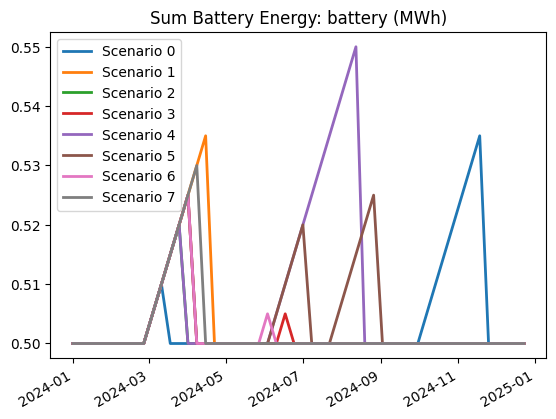

        LtmPlot.make_generic_plot(
            battery.sum_energy(), f"Sum Battery Energy: {battery.name}"
        )
        pass

    for agg in reversed(ltm.model.aggregated_hydro_modules()):
        LtmPlot.make_generic_plot(

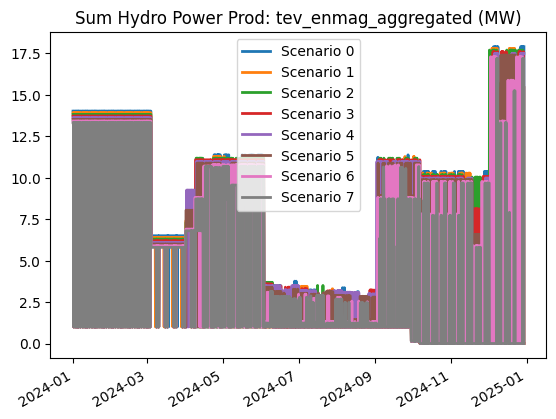

            agg.sum_hydro_power_production(), f"Sum Hydro Power Prod: {agg.name}"
        )

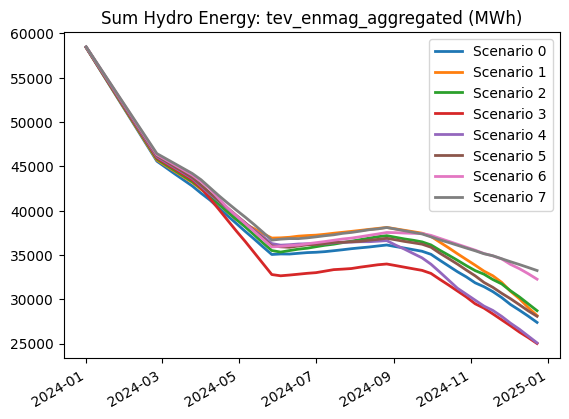

        LtmPlot.make_generic_plot(
            agg.sum_hydro_energy(), f"Sum Hydro Energy: {agg.name}"
        )
        pass

    for busbar in reversed(ltm.model.busbars()):
        print_have_results(busbar)

        # Market results

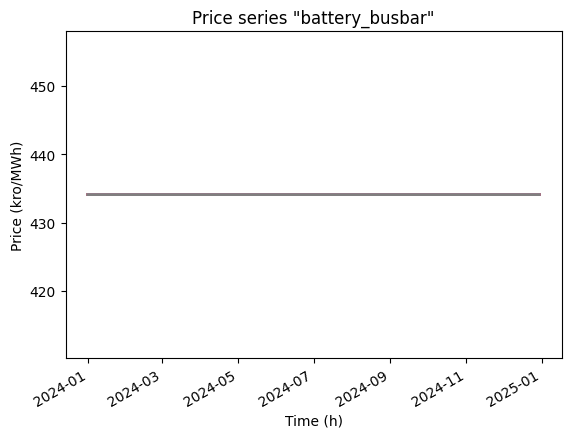

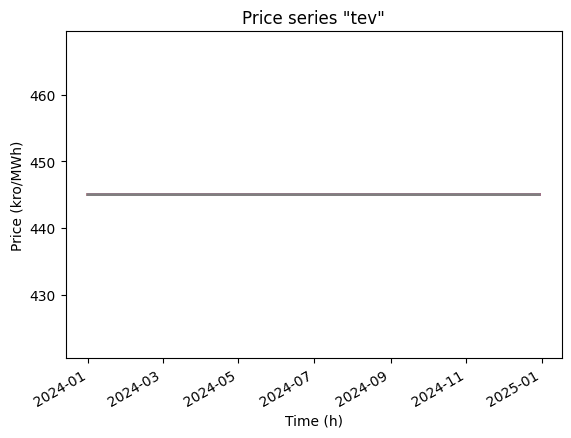

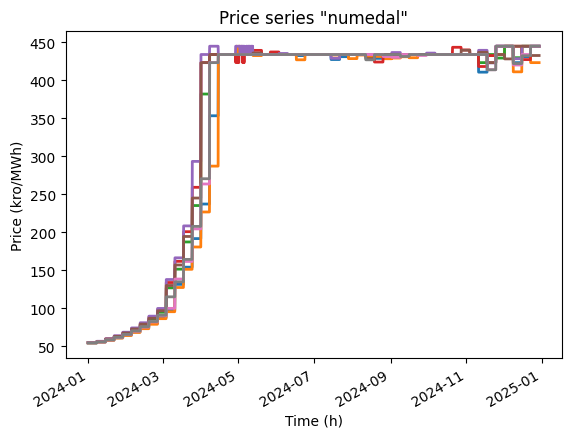

        LtmPlot.make_market_results_plot(busbar.market_result_price(), busbar.name)

        #

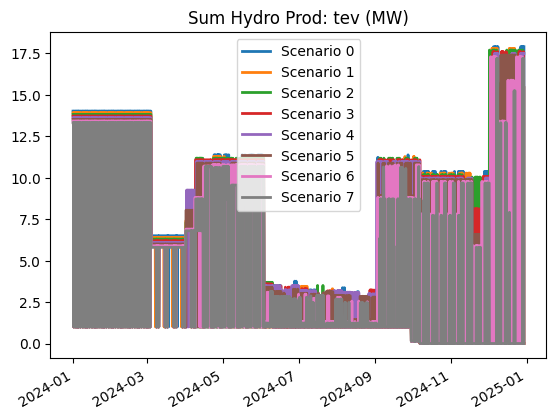

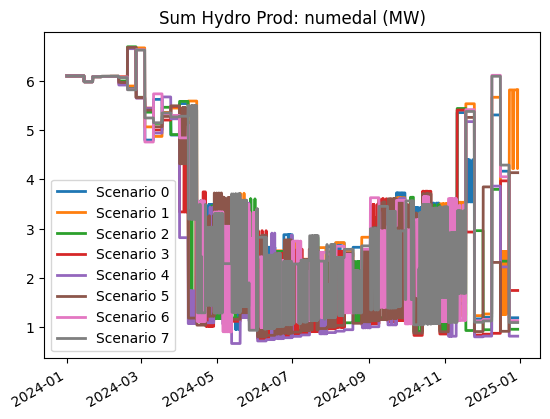

        LtmPlot.make_generic_plot(
            busbar.sum_hydro_production(), f"Sum Hydro Prod: {busbar.name}"
        )

        #
        LtmPlot.make_generic_plot(

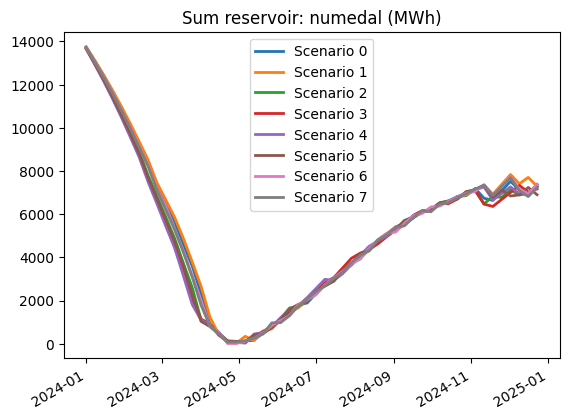

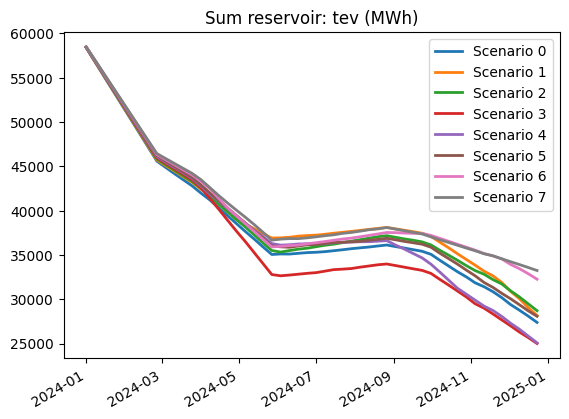

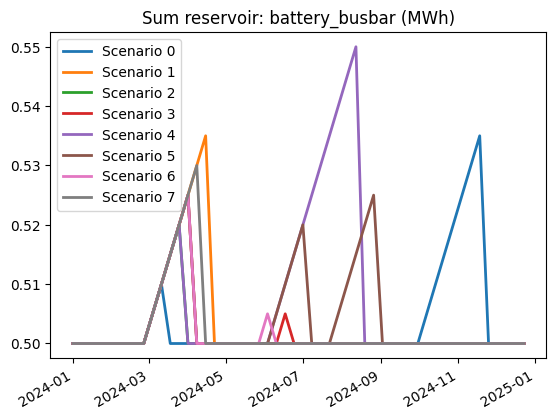

            busbar.sum_reservoir(), f"Sum reservoir: {busbar.name}"
        )

        # Sum load

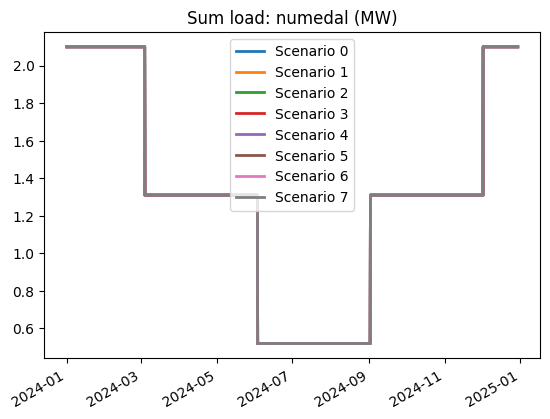

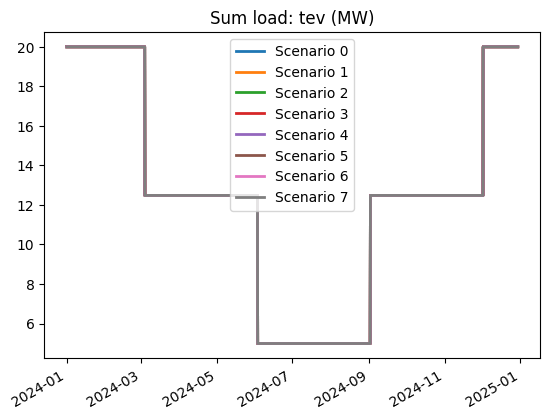

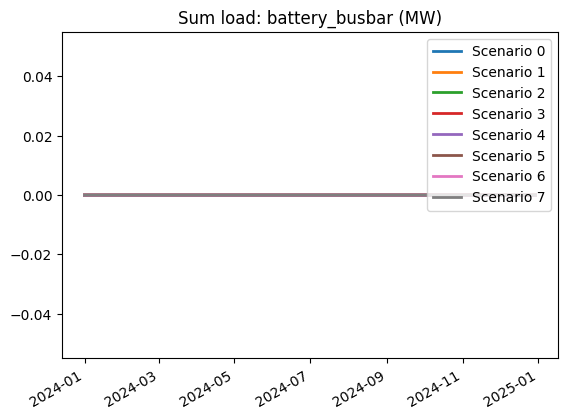

        LtmPlot.make_generic_plot(busbar.sum_load(), f"Sum load: {busbar.name}")

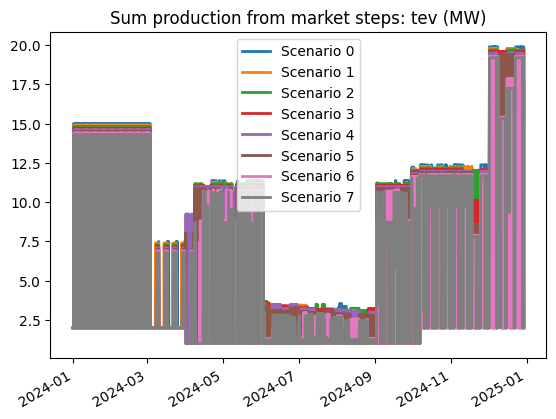

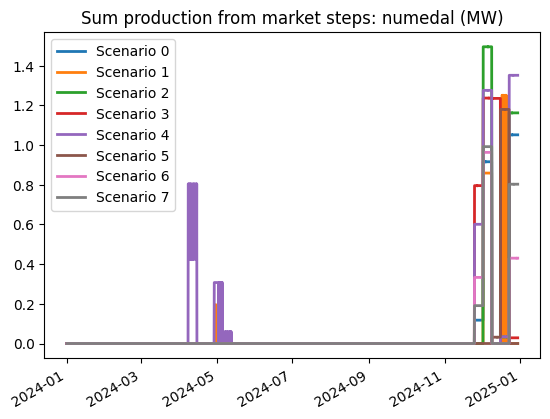

        LtmPlot.make_generic_plot(

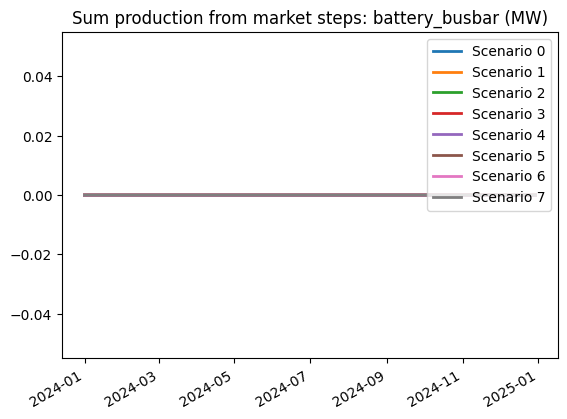

            busbar.sum_production_from_market_steps(),
            f"Sum production from market steps: {busbar.name}",
        )

        # Water values

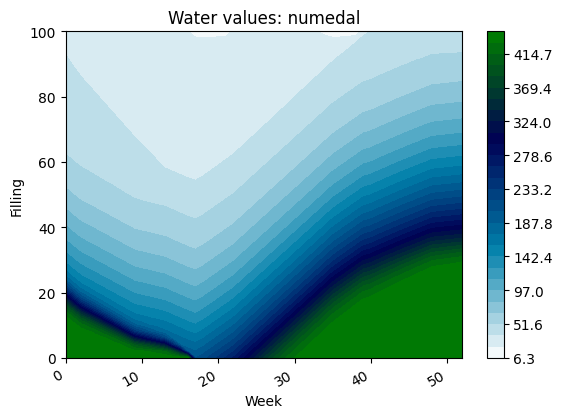

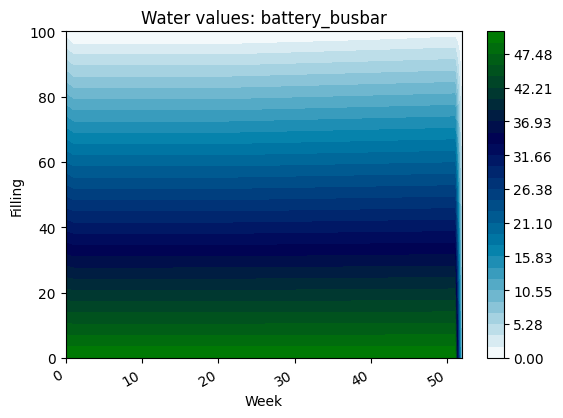

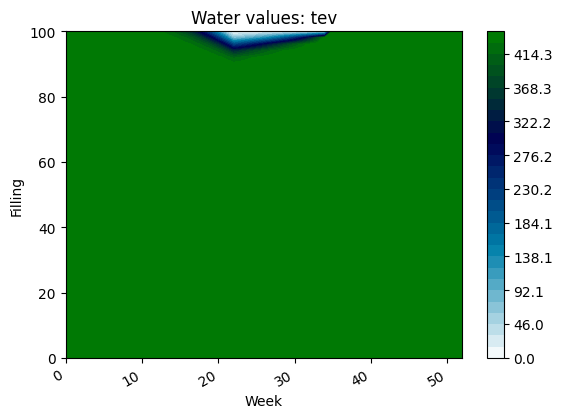

        LtmPlot.make_water_value_plot(busbar.water_value_results(), busbar.name)

    # Detailed hydro results from
    for busbar in ltm.model.busbars():
        print(busbar)

        # Busbar reservoirs
        for rsv in busbar.reservoirs():
            display("Reservoir")

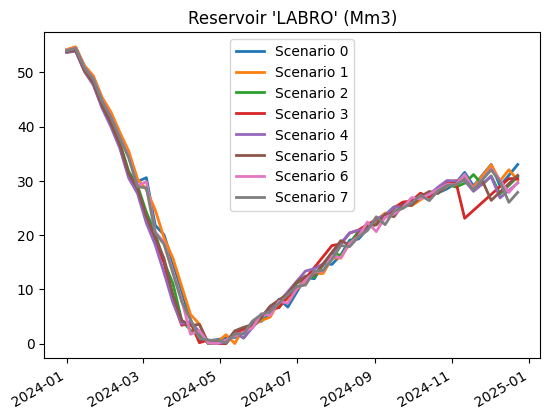

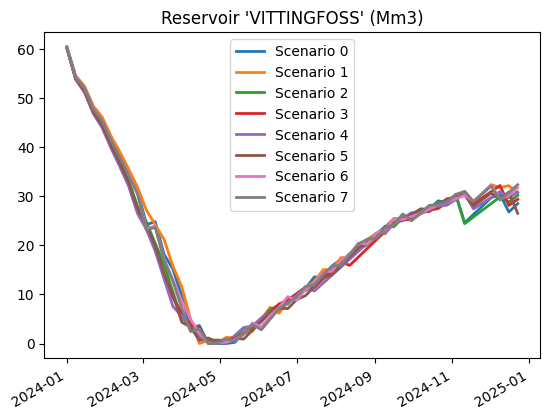

            LtmPlot.make_generic_plot(rsv.reservoir(), f"Reservoir '{rsv.name}'")

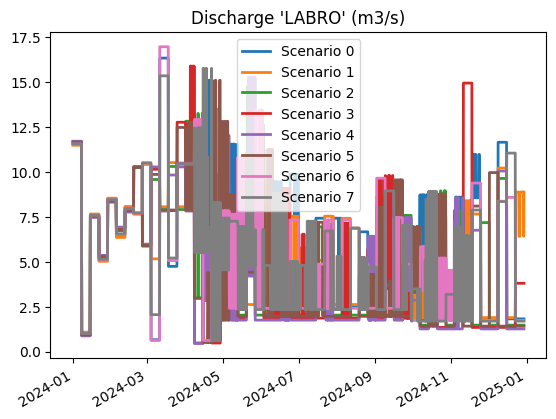

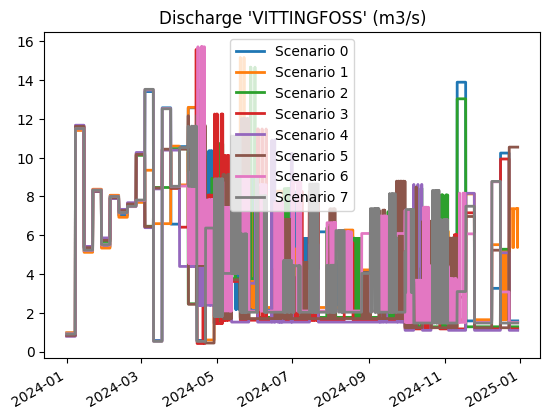

            LtmPlot.make_generic_plot(rsv.discharge(), f"Discharge '{rsv.name}'")

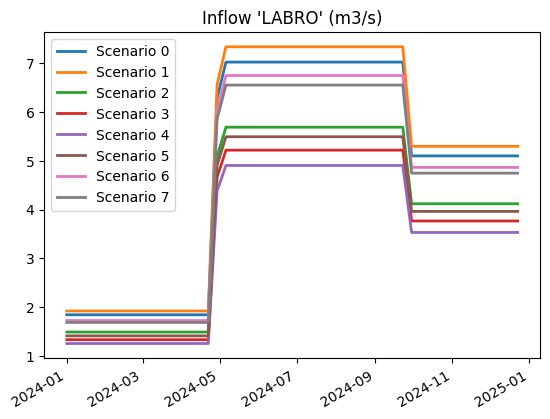

            LtmPlot.make_generic_plot(rsv.inflow(), f"Inflow '{rsv.name}'")

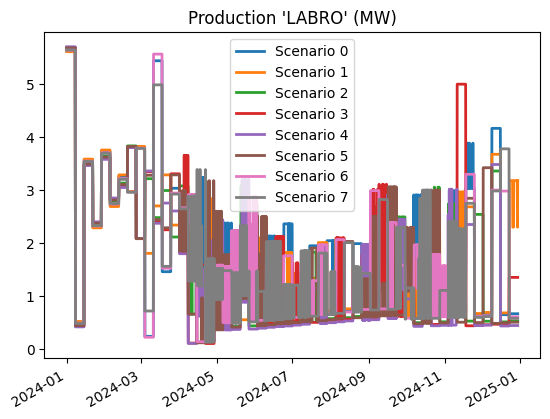

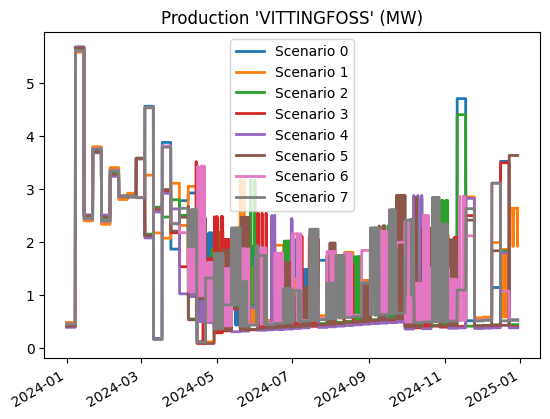

            LtmPlot.make_generic_plot(rsv.production(), f"Production '{rsv.name}'")

from pyltmapi import LtmDot


def open_and_write_model(filename: str):
    session = LtmSession("ikernel", ltm_core_path=ltm_core_path, overwrite_session=True)

    # Explicitly set license file
    session.model.global_settings.ltm_license_file_path = license_file

    with session:
        try:
            # Load model from file.
            session.load(filename=filename)

            # Write model to disk, and automatically generate an output directory.
            session.write_model()

            # Display model graph
            LtmDot.display_dot_image(session.build_connection_tree())
            LtmDot.display_dot_image(session.build_busbar_graph())

            # Execute/run LTM/EMPS on the model
            last_rc, results = session.execute_model()

            # If last return code is not 0, then there was an error.
            if last_rc != 0:
                err = results[0]["log_file_contents"]
                display_markdown(err)
            else:
                # Make plots from the results
                generate_plots(session)

        except Exception as e:
            print(e)
            raise (e)

open_and_write_model("busbar_battery.json")

INFO:LtmApiModel:(ikernel) Loading model from file: busbar_battery.json
INFO:LtmApiModel:(ikernel) LtmApiModel::maybe_generate_output_dir: output_path: /builds/energy/ltm/pyltmapi/docs/ltm-api/guides/batteries/testout_batteries/2026-03-24-133824.442-EMPS-parallell
INFO:LtmApiModel:(ikernel) Using license file '/builds/energy/ltm/pyltmapi.tmp/CI_LTM_LICENSE_FILE'
INFO:LtmApiModel:(ikernel) Using license file '/builds/energy/ltm/pyltmapi.tmp/CI_LTM_LICENSE_FILE'
INFO:Validator:(ikernel) Model validation succeeded
INFO:LtmApiModel:(ikernel) Writing model to path /builds/energy/ltm/pyltmapi/docs/ltm-api/guides/batteries/testout_batteries/2026-03-24-133824.442-EMPS-parallell
INFO:Validator:(ikernel) Model validation succeeded

INFO:LtmApiModel:(ikernel) Model executed successfully

busbar/battery_busbar.have_detailed_hydro_results()      = False
busbar/battery_busbar.have_aggregated_hydro_results()    = False
busbar/battery_busbar.have_battery_results()             = True
busbar/battery_busbar.have_water_value_results()         = True
busbar/battery_busbar.have_market_results()              = True

busbar/tev.have_detailed_hydro_results()      = False
busbar/tev.have_aggregated_hydro_results()    = True
busbar/tev.have_battery_results()             = False
busbar/tev.have_water_value_results()         = True
busbar/tev.have_market_results()              = True

busbar/numedal.have_detailed_hydro_results()      = True
busbar/numedal.have_aggregated_hydro_results()    = True
busbar/numedal.have_battery_results()             = False
busbar/numedal.have_water_value_results()         = True
busbar/numedal.have_market_results()              = True

busbar/numedal

'Reservoir'

'Reservoir'

INFO:LtmApiModel:(ikernel) Not deleting output dir (/builds/energy/ltm/pyltmapi/docs/ltm-api/guides/batteries/testout_batteries/2026-03-24-133824.442-EMPS-parallell), as delete_output_dir: false, and has_generated_output_dir: true
INFO:LtmApiModel:(ikernel) Not deleting output dir (/builds/energy/ltm/pyltmapi/docs/ltm-api/guides/batteries/testout_batteries/2026-03-24-133824.442-EMPS-parallell), as delete_output_dir: false, and has_generated_output_dir: true

busbar/tev
busbar/battery_busbar
